Torsion Testing Machines

Torsion testing measures the response of materials and components under twisting forces. It is used in life testing of driveline components, calibration of torque wrenches, in-line testing of motors, engines, and transmissions, high-speed aircraft fuel pump testing, viscosity measurement, and automotive wheel torque measurement — across automotive, aerospace, and industrial sectors.

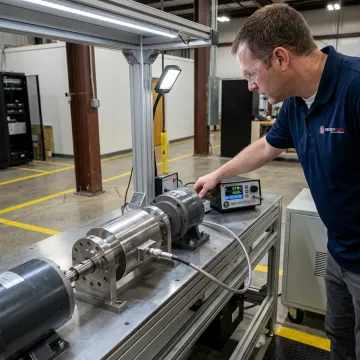

A torsion test involves mounting the test specimen between a torque sensor and a drive mechanism, applying a controlled twisting force, and measuring the resulting torque using a calibrated sensor. Signal conditioning electronics process the output — typically ±10 VDC or strain gage-compatible — for data acquisition. On-board shunt calibration circuits and TEDS chips ensure measurement accuracy throughout the test.

SensorData Technologies' torsion testing sensors cover a wide capacity range from 50 oz-in up to 1,000K lb-in. Dual-range models like the T171-231 offer switchable ratios of up to 5:1, such as 5/20 lb-ft and 500/1.5K lb-ft, providing flexibility across multiple test requirements without changing sensors.

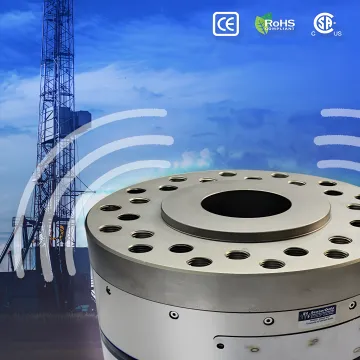

Yes. The SYNTH Wireless Rotary Torque Sensor is intrinsically safe in ZONE1 DIV 1 explosive environments and is immune to EMI, ESD, and nearby metal interference. It operates on a 2.4 GHz Bluetooth ISM band, requires no external power supply or cabling, and is suitable for oil drilling, petroleum mining, and engine testing in flammable environments.

SensorData offers multiple signal transmission technologies including wired AC/DC strain gage, rotary transformer, slip ring, and true wireless Bluetooth (2.4 GHz). Wireless models like the SYNTH Series transmit up to 500 feet, while the BT4000 Series uses induction power and transmits up to 100 feet, eliminating cabling in high-vibration or confined-space environments.

Most SensorData torque sensors are compatible with both AC carrier and DC strain gage signal conditioning electronics, including third-party systems. In-house calibration is provided free with SensorData electronics, and calibration with customer-supplied electronics is available for a fee. The T171-231 features proprietary on-board electronics with ±10 VDC output and 1 KHz bandwidth for standalone operation.
