Torque Sensors & Transducers — Force Measurement Solutions

The full product line covers torque capacities from 50 oz-in on small rotary sensors up to 1,000K lb-in on heavy-duty rotary transformer models, ensuring there is an appropriate sensor for applications ranging from fractional horsepower devices to large industrial drivetrains.

The T258 model is rated for continuous operation at 35,000 RPM, with select T260 models offering an optional 35,000 RPM rating as well. Standard rotating sensors such as the T211 and BT4000 Series support up to 10,000 to 20,000 RPM depending on configuration.

Yes. The SYNTH Series uses true Bluetooth 2.4 GHz wireless transmission with a range exceeding 500 feet and is powered by a long-life Lithium Ion battery, while the BT4000 uses induction-powered Bluetooth wireless with a 100-foot range. Both are immune to EMI and ground loop interference.

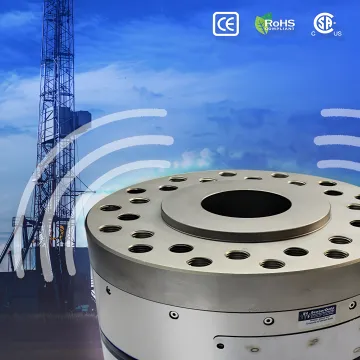

Yes. The SYNTH Wireless Rotary Torque Sensor is intrinsically safe in ZONE 1 DIV 1 explosive environments and follows regulated ISM bands for industrial, scientific, and medical applications, making it suitable for oil drilling, petroleum mining, and engine testing in flammable or caustic environments.

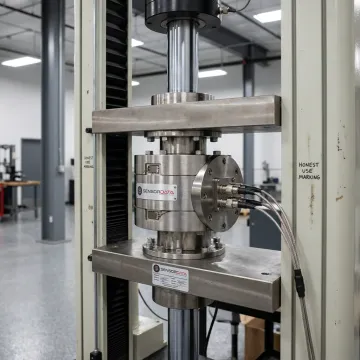

SensorData Technologies' torque sensors serve aerospace and defense (aircraft fuel pump test stands, Army-Navy AND standard compliance), automotive and EV testing (engine test cells, drivetrain and EV powertrain validation), industrial and manufacturing (motor, pump, compressor, and material testing), and petroleum and energy (oil drilling and power generation rotating equipment).

Most wired sensors are compatible with AC carrier or DC strain gage signal conditioning electronics, including SensorData's own i200 series. The T171-231 dual-range model features proprietary on-board electronics with ±10 VDC output and 1 KHz bandwidth, eliminating the need for external signal conditioners.

SensorData provides free in-house calibration on select models when used with SensorData electronics, with calibration available for a fee when customer-supplied electronics are used. All standard sensors carry a 100% satisfaction guarantee with a 60-day return policy, and lifetime warranty options are available on select products.
