Conveyor Sensor Islands

A conveyor sensor island is an integrated measurement assembly installed within a belt conveyor system to monitor real-time mechanical data such as tensile force, bending moments, and twisting moments. It uses on-board electronics and wireless or wired signal transmission to relay live data to a base station or PC, enabling operators to track conveyor health continuously and act on early warning signs before failures occur.

SensorData Technologies' turnkey conveyor sensor systems measure four force and moment components simultaneously: tensile force (Fz), horizontal bending moment (Mx), vertical bending moment (My), and twisting moment (Mz). This 4-component measurement capability gives engineers a comprehensive view of conveyor stress states, supporting both predictive maintenance and structural benchmarking of belt conveyor systems.

The turnkey conveyor diagnostic system transmits real-time data wirelessly up to 750 feet using a 915 MHz ISM-band frequency. No FCC license is required to operate in this band. The remotely located FM base station transceiver receives signals and connects to a PC via USB, where included data acquisition software handles live display and archiving of all measurement channels.

Yes. Predictive maintenance is one of the primary applications for these systems. By continuously monitoring force and moment values against predetermined maximum allowable thresholds, the system detects abnormal stress patterns that indicate wear, misalignment, or impending component failure. This allows maintenance teams to schedule interventions proactively, avoiding unplanned downtime and the significant cost of emergency conveyor repairs in automotive and industrial facilities.

The turnkey system features a simple drop-in design engineered specifically for belt conveyors, minimizing installation complexity. No extensive cabling is required thanks to wireless transmission. SensorData Technologies also provides installation guidance and setup assistance, as well as engineering consultation for custom applications. Free in-house calibration is included when the system is supplied as a complete unit, ensuring accuracy from day one.

Yes. SensorData Technologies offers custom sensor designs and capacities to accommodate non-standard conveyor configurations. Their multi-axis sensors are available in a range of torque and thrust capacity combinations, and the engineering team provides consultation for unique application requirements. Customers can also request interconnecting cable assemblies and compatible signal conditioning electronics as part of a complete custom measurement solution.

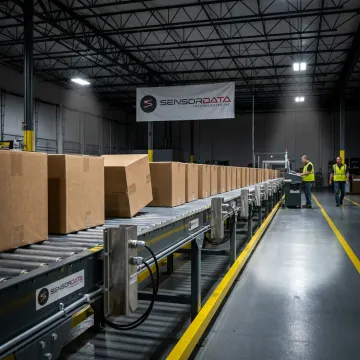

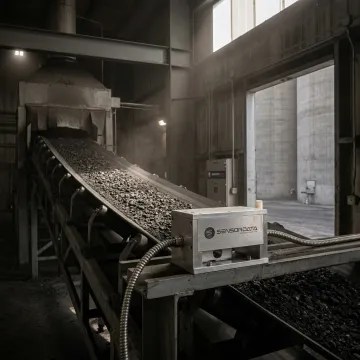

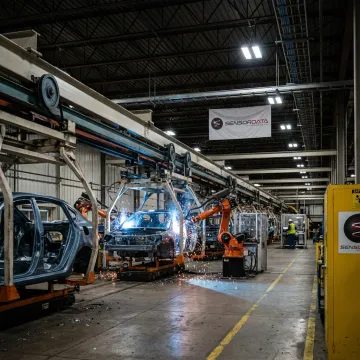

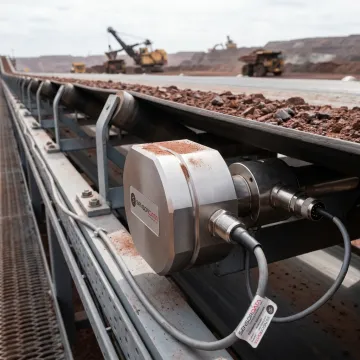

Conveyor sensor islands are widely used in automotive manufacturing for real-time line monitoring, in general industrial and material handling environments for predictive maintenance, and in structural and material testing laboratories for benchmark studies. Any facility operating belt conveyors where downtime is costly — including power generation, mining, and heavy manufacturing — benefits from continuous conveyor health monitoring provided by these sensor systems.
