Force Sensors (Fatigue-Rated, Compression, General Purpose, Pancake/Shear Web Load Cells)
- 100M cycle fatigue-rated shear web design
- Ultra-low deflection under 0.002 inch
- High accuracy: nonlinearity as low as 0.07%
Precision Sensor Manufacturer
DMCA Protection Verified
SensorData Technologies' Pancake Load Cells are low-profile, high-stiffness force measurement sensors engineered for demanding applications including material testing, airframe testing, press calibration, and industrial weighing. Built from SAE 4340 alloy steel with fatigue ratings up to 100 million fully reversed cycles, these sensors deliver exceptional accuracy and durability.
Pancake load cells measure compressive or tensile forces using strain gauges bonded to a shear web or disc-shaped element. When a force is applied, the element deforms slightly, causing a change in electrical resistance in the strain gauges. This signal is conditioned and converted into a precise force reading. Their low-profile design ensures high stiffness and minimal deflection, typically less than 0.002 inches.
Talk to our experts for custom solutions and tailored guidance.

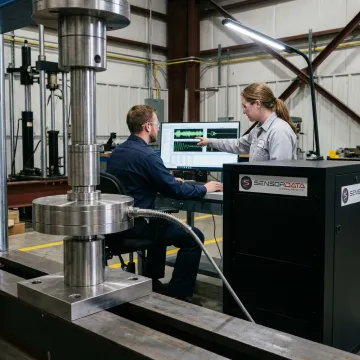

Used in airframe test fixtures and structural testing programs requiring fatigue-rated, high-accuracy force measurement.
Integrated into material testing machines and component life cycle rigs demanding high stiffness and 100M-cycle fatigue ratings.

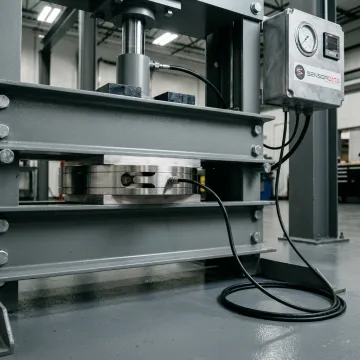

Applied in press calibration, hydraulic actuator force measurement, and rolling mill force monitoring on production floors.
Deployed in tank, bin, hopper, vessel, silo, and suspension weighing systems requiring compact, highly accurate force sensors.
Talk to our experts for custom solutions and tailored guidance.
Our pancake load cells are rated for 100 million fully reversed cycles, ensuring long-term reliability in continuous fatigue and life cycle testing environments.
With nonlinearity and hysteresis as low as 0.07%, our sensors deliver precise, repeatable measurements for the most demanding aerospace and structural test applications.
Founded in 1993, SensorData Technologies brings decades of in-house design, engineering, and manufacturing experience to every custom and standard sensor solution.
Submit your specifications and our sales team will respond promptly with pricing, lead times, and technical guidance tailored to your application.
